RepRap Speed.
Zero Compromise.

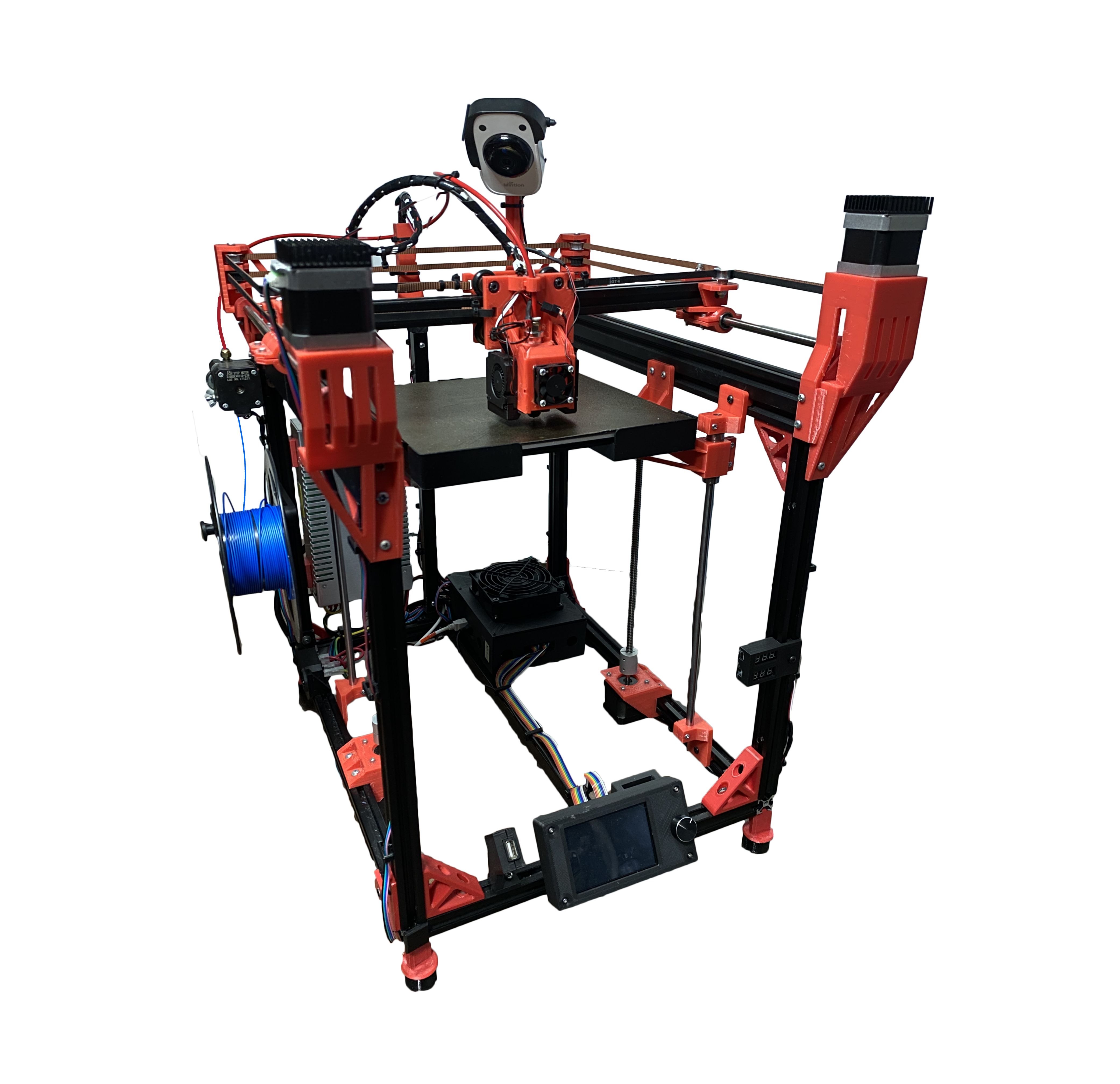

A fast 3D Printer using CoreXY kinematics, built from two different bedslingers; the Flsun i3 2017 and Mingda Magician X. Demonstrating the usability of RepRap in modern printers.
Status: Version 2.4 Released. Check Github for firmware and models!
Quality Benchy in
25 minutes.
Maximized reliablity & speed without sacrificing print integrity.
Performance Comparison
(mm/s)
(mm/s)
(mm³/s)
(Minutes)
(°C)
(mm³)
Technical Specifications
30000mm/s² Accel
200-450mm/s quality print speed
Magnetic PEI/Glass
Separate 5V Logic Rail
350°C Max Temp, supports up to 550°C
MKS Robin Nano + RPi Zero 2W
Verstaile linear rail/rod system
Quad linear rod Z-Axis
E3D Titan Direct Drive Dual Gear
Includes CF and GF variants
Includes iteration

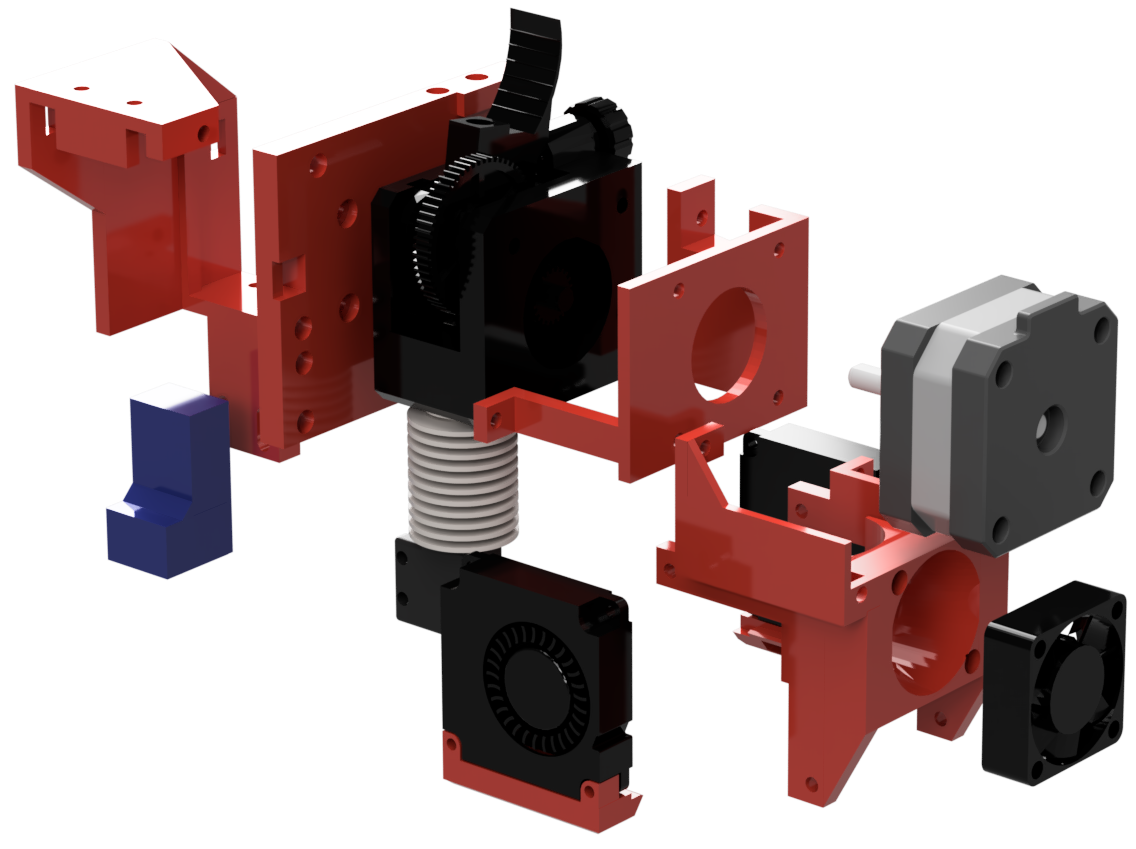

CoreXY + Direct Drive
The gantry system uses a rigid frame made completely from salvaged extrusions. This allows for minimal flex and vibrations during high-speed movements.
E3D's V6 Volcano Hotend paired with the Titan Extruder allows for extremely high flowrates, and thus print speeds.
To reduce effects of VFA and ringing at higher speeds, the kinematics involve a hybrid linear rod/rail XY system versus the original T-slot extrusion design.
Automated Nozzle Cleaning System
No more constant watching of first layers or flush cutters. The nozzle purge system reliably pressurizes the melt zone and cleans the nozzle for a 'print-and-go' system.

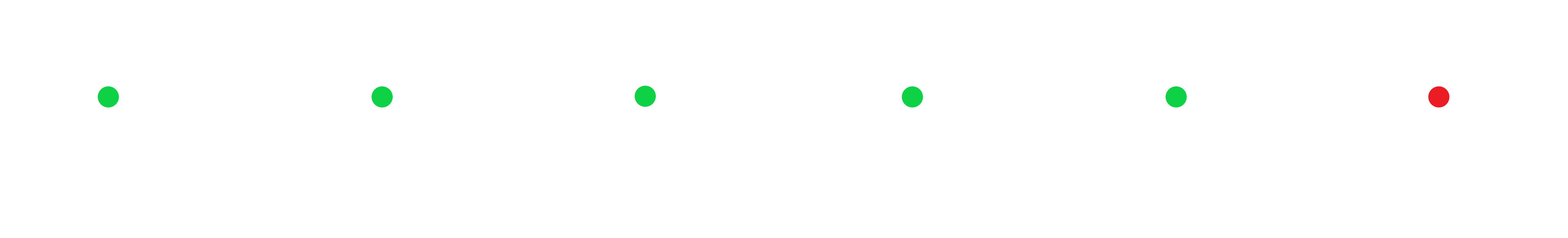

Development Log
RELEASE - v2.4
Second official revision update.
Addition of automated nozzle cleaning/purge system.
Addition of auxillary bed cooling.
General fixes and improvements to firmware.
RELEASE - v2.0
Second official revision release. Improvements to both software and hardware.
Issues encountered in v1.5 fixed (refer to documentation for all resolved issues)
"Upgraded" to Klipper firmware for addition of input shaping and vibration compensation.
RELEASE - v1.5
First official 'bugfix' of the project released.
Includes fixed 3d models to improve speed and print quality.
Marlin firmware addition of MKS WIFI ESP8266.
RELEASE - v1.0
First official revision released. Documentation and design files uploaded.
RELEASE - v0.5
General assembly of components and basic prototype concept complete.
DISASSEMBLY
Disassembly of existing printers complete.
MATERIALS + DESIGNING
Rough draft of parts were finalized to figure out what needed fixing.
PLANNING + CONCEPT
Assessment of existing components and parts, as well as figuring out what should be included has been completed at this point.
